Chapter 5 Adding other spatial data to WBE

5.1 Overview

In this training, you will link zip code boundaries to sewersheds.

5.1.0.1 Data you will need for this training

  • New York State Sewershed boundaries

5.1.1 Install and Load R packages

Install packages

install.packages("dplyr")
install.packages("ggplot2")
install.packages("sf")
install.packages("tigris")
install.packages("units")

Load packages into your current R session.

library(ggplot2)
library(tigris)
library(sf)
library(dplyr)

5.1.2 Load data into R

# sewershed boundaries for NYS
ny_sewersheds <- st_read("data/New York State Sewersheds/New York State Sewersheds.shp")

ny_zips <- zctas(state = "New York", year = 2010)

5.1.3 Intersect zip code TAs with sewersheds

# Sewershed boundaries - spatial data #

# Sewersheds need to remove upstream
ny_sewersheds <- ny_sewersheds %>% filter(Method == "Influent")

# there are overlapping sewersheds, so the geometry needs to be made valid
ny_sewersheds <- st_make_valid(ny_sewersheds)

# spatial transform the county data
ny_zips <- st_transform(ny_zips, st_crs(ny_sewersheds))

# intersect the datasets
intersection <- st_intersects(ny_zips, ny_sewersheds)

# the result is a list object of each zip code and what row from the sewershed
# object the zip code matches with

# make it a dataframe
intersection <- as.data.frame(intersection)

# the first column are the rows for the zip codes
# the second column are the rows for the sewersheds

# add row ids to each object so we can make a table for each zip code and what
# sewershed it intersects with
ny_sewersheds$sewer_row_id <- seq(1:nrow(ny_sewersheds))
ny_zips$zip_row_id <- seq(1:nrow(ny_zips))

# rename the columns in the intersection object
intersection <- intersection %>%
  rename(zip_row_id = row.id,
         sewer_row_id = col.id)

# merge the intersection object with the zip code object
ny_zips_merge <- left_join(ny_zips, intersection, by = c("zip_row_id"))

# add the sewershed identifying information
sewer_id_list <- ny_sewersheds %>%
  st_drop_geometry() %>%
  select(SW_ID, sewer_row_id)

# merge to the zip code object
ny_zips_merge <- left_join(ny_zips_merge, sewer_id_list, by = c("sewer_row_id"))

# add sewer indicator
ny_zips_merge$sewer_yn <- ifelse(is.na(ny_zips_merge$SW_ID), "No", "Yes")

# make a table that could be exported
ny_zip_table <- ny_zips_merge %>%
  select(ZCTA5CE10, sewer_yn, SW_ID) %>%
  rename(zip_code = ZCTA5CE10) %>%
  st_drop_geometry()

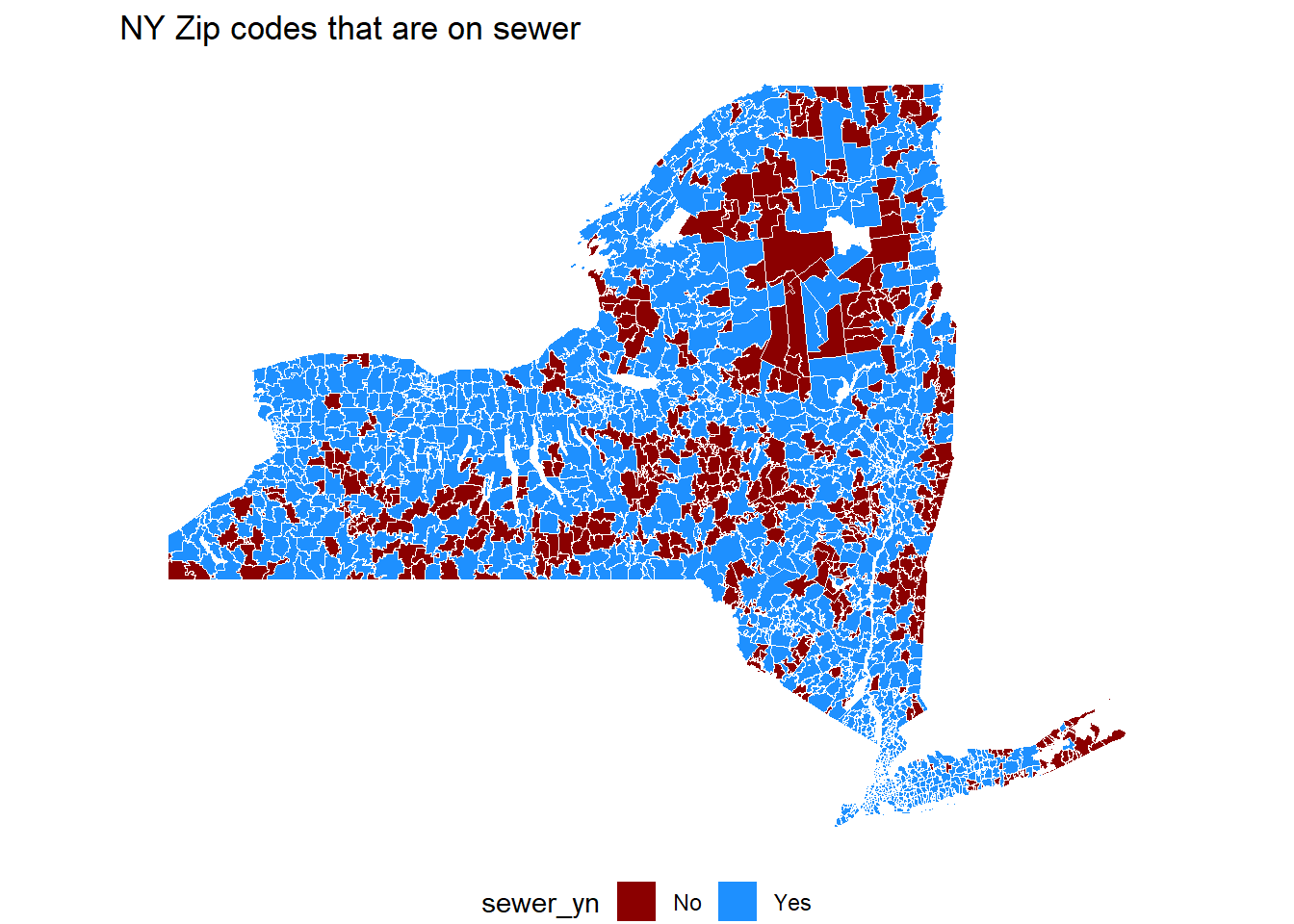

# map the zip codes indicating if they intersect with a sewershed or not

ggplot()+
  geom_sf(data = ny_zips_merge, aes(fill = sewer_yn), color = "white")+
  theme_void()+
  theme(legend.position = "bottom")+
  labs(title = "NY Zip codes that are on sewer")+
  scale_fill_manual(values = c("Yes" = "dodgerblue",
                               "No" = "darkred"))

head(ny_zip_table)
##   zip_code sewer_yn               SW_ID
## 1    12205      Yes 36001NY0026875ACWWL
## 2    12205      Yes 36001NY0027758ACWWM
## 3    12009      Yes 36001NY0031534ACWWD
## 4    12009      Yes 36001NY0022217ACWWE
## 5    12009      Yes 36001NY0022225ACWWF
## 6    14804       No                <NA>

5.2 Training review

This data file can then be used to link other zip code level data to sewersheds. If a zip code intersects with a sewershed, then residents of that zip code likely live on or near the sewer system.
